Wrench, Impact,1.5" Sq. Drive,Hydraulic,No Whips

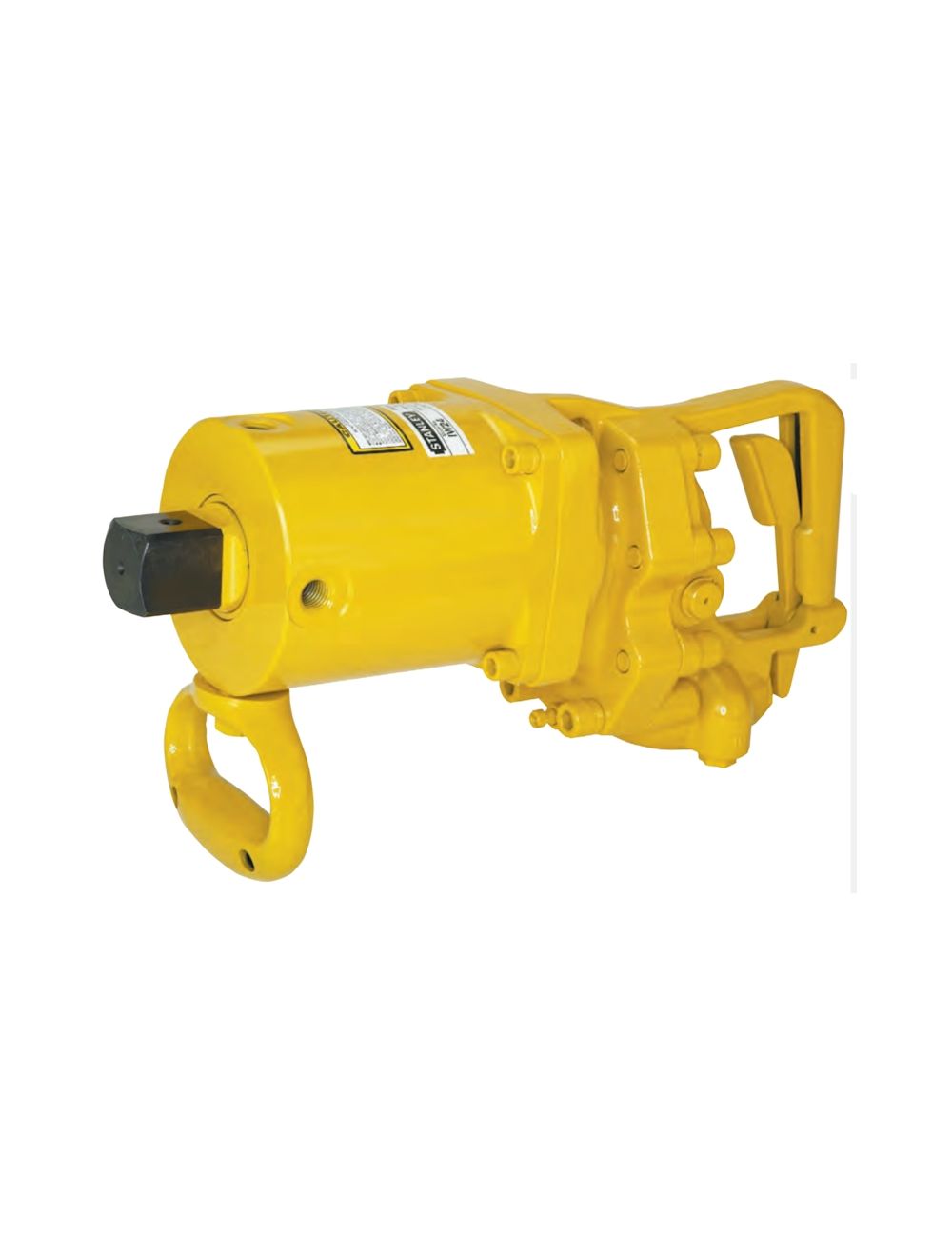

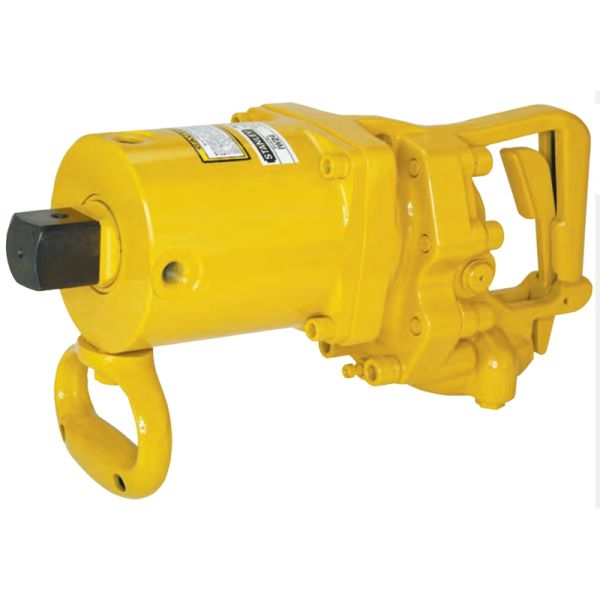

STANLEY IW24 UNDERWATER IMPACT WRENCH (IW24360)

The Stanley IW24 is an extreme duty 1-1/2" square drive impact wrench designed for the toughest underwater bolting applications. Powered by a Stanley integral Hyrevz motor, the IW24 has a durable swing hammer impact mechanism with adjustable impact intensity from 800 to 3500 ft-lbs (1088 to 4760 Nm) of torque. Designed to run from a wide range of hydraulic circuits, this wrench allows underwater bolting with the best in the most extreme applications. "D" style grip handle with side assist handle and hi-visibility yellow paint is standard.

IW24360 Specifications
Capacity: 1-1/2" (38mm) Square Drive
Torque: 800-3500 ft-lbs (1088-4760 Nm)
Flow Range: 7-12 gpm (26-45 lpm)
Working Pressure: 1800-2000 psi (124-140 bar)
Full Relief Setting: 2250 psi (155 bar)
Weight: 43 lb (19.5 kg)
Length: 16.5" (41cm)
Width: 5.1" (13cm)
Hydraulic Ports: -8 SAE o-ring
Couplers: No (see Accessories)
Hose Whips: No (see Accessories)

IW16350 Features
Integral Stanley Hyrevz gear motor produces high torque
Stainless Steel spools and fasteners
Forward-Reverse with variable speed
"D" style grip handle with inside trigger
Feathering on/off trigger for precise control
Adjustable impact intensity
3500 ft-lbs (4760 Nm) of maximum impact torque
Durable swing hammer mechanism
Cast-in lifting eye

IW24360 Accessories
03971: Flush-Face Coupling Set, 3/8" NPT
03974: Flush-Face Coupling Set, 1/2" NPT
06830: Hose Whip 18" long, -8 SAE x 1/2" NPT
31848: Dual Hose, 50' x 1/2", with couplers
31972: Dual Hose, 25' x 1/2", with couplers
58633: Twinned Hose, 25' x 1/2", with couplers
58634: Twinned Hose, 50' x 1/2", with couplers
