Wrench, Impact, 3/4

Wrench, Impact, 3/4" Sq. Drive,Hydraulic,O/C

Wrench, Impact, 1" Sq. Drive,Hydraulic, QD's

was $5,187.00 Special Price $5,005.46
Availability: In stock

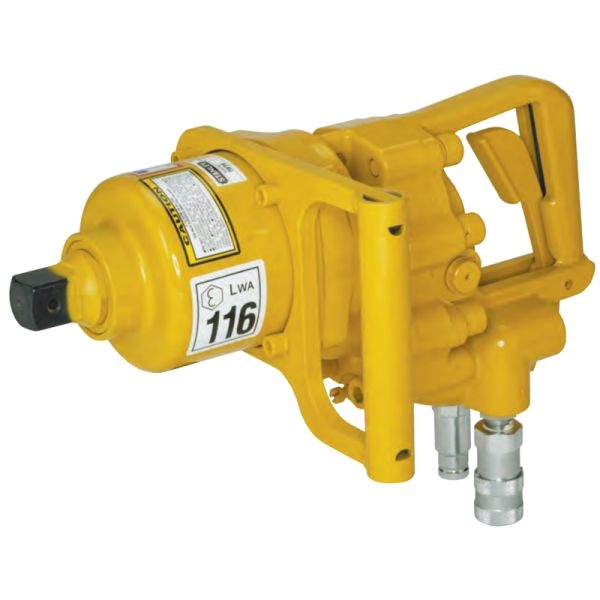

The Stanley IW16 is a heavy duty 1" square drive impact wrench designed for the toughest underwater bolting applications. Powered by a Stanley integral Hyrevz motor, the IW16 has a durable swing hammer impact mechanism with adjustable impact intensity from 500 to 2500 ft-lbs (680 to 3400 Nm) of torque. Designed to run from a wide range of hydraulic circuits. "D" style grip handle with multi-position assist handle and hi-visibility yellow paint is standard.

IW16350 Specifications
Capacity: 1" (25mm) Square Drive
Torque: 500-2500 ft-lbs (680-3400 Nm)
Flow Range: 7-12 gpm (26-45 lpm)
Working Pressure: 1500-2000 psi (105-140 bar)
Full Relief Setting: 2250 psi (155 bar)
Weight: 26 lb (12 kg)
Length: 15" (38cm)
Width: 4.5" (11cm)
Hydraulic Ports: -8 SAE o-ring
Connection Size and Type: 3/8" male pipe adapter
Hose Whips: No (see Accessories)

IW16350 Features
Integral Stanley Hyrevz gear motor produces high torque
Stainless Steel spools and fasteners
Forward-Reverse with variable speed
"D" style grip handle with inside trigger
Feathering on/off trigger for precise control
Adjustable impact intensity
2500 ft-lbs (3400 Nm) of maximum impact torque
Durable swing hammer mechanism
Cast-in lifting eye

IW16350 Accessories
03971: Flush-Face Coupling Set, 3/8" NPT
03974: Flush-Face Coupling Set, 1/2" NPT
06830: Hose Whip 18" long, -8 SAE x 1/2" NPT
31848: Dual Hose, 50' x 1/2", with couplers
31972: Dual Hose, 25' x 1/2", with couplers
58633: Twinned Hose, 25' x 1/2", with couplers
58634: Twinned Hose, 50' x 1/2", with couplers
31203: Extension, 10", 1" Drive
33276: Socket Retainer Pin, 1" Square Drive Socket
33277: Socket Retainer Ring, 1" Square Drive Socket
