Wrench, Impact, 3/4" Sq. Drive,Hydraulic,O/C
$0.00
Availability:
Out of stock
SKU
IW12340C

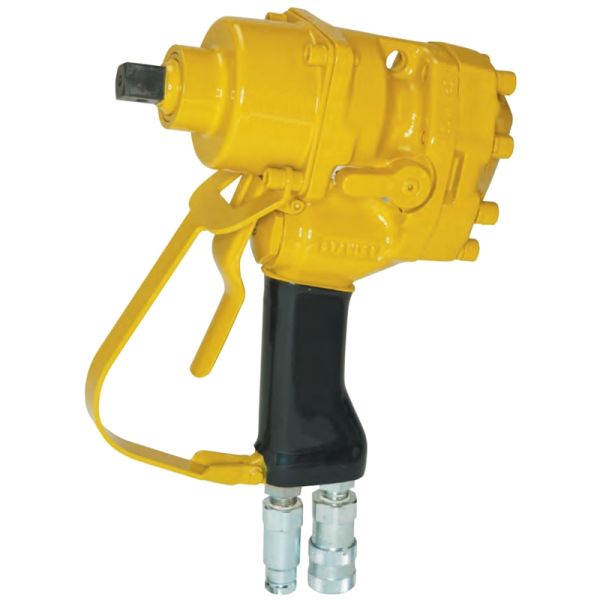

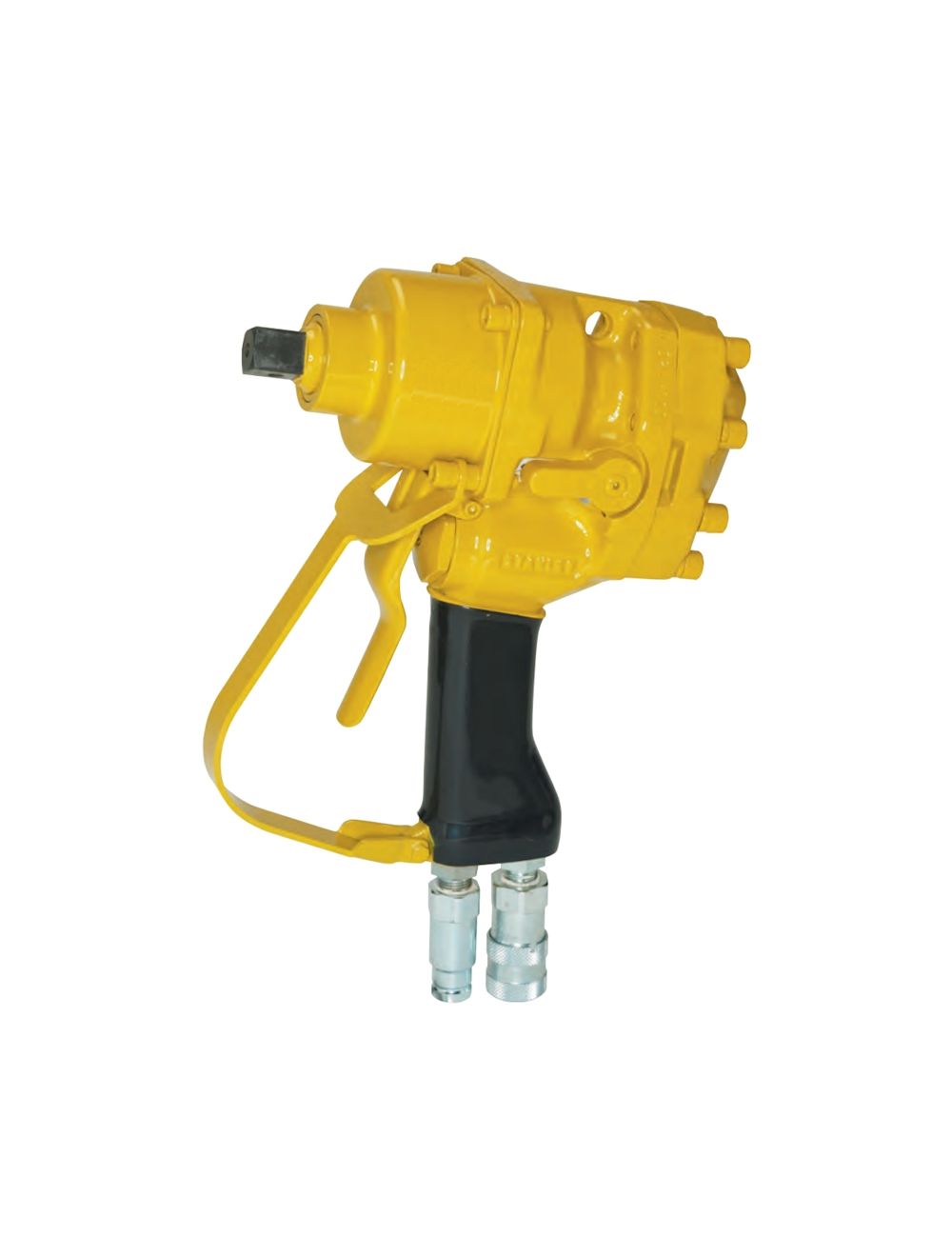

STANLEY IW12 UNDERWATER IMPACT WRENCH (IW12340C)
The Stanley IW12 is a medium duty 3/4" square drive impact wrench designed for underwater bolting and drilling applications. Powered by a Stanley integral Hyrevz motor, the IW12 has a durable swing hammer impact mechanism with adjustable impact intensity from 250 to 1200 ft-lbs (340 to 1632 Nm) of torque. Designed to run from a wide range of hydraulic circuits, this wrench allows underwater bolting in the most extreme applications. Trigger guard and hi-visibility yellow paint is standard.
The Stanley IW12 is a medium duty 3/4" square drive impact wrench designed for underwater bolting and drilling applications. Powered by a Stanley integral Hyrevz motor, the IW12 has a durable swing hammer impact mechanism with adjustable impact intensity from 250 to 1200 ft-lbs (340 to 1632 Nm) of torque. Designed to run from a wide range of hydraulic circuits, this wrench allows underwater bolting in the most extreme applications. Trigger guard and hi-visibility yellow paint is standard.
IW12340C Specifications |
---|
Capacity: 3/4" (19mm) Square Drive |
Torque: 250-1200 ft-lbs (340-1632 Nm) |
Flow Range: 4-12 gpm (15-45 lpm) |
Working Pressure: 1000-2000 psi (70-140 bar) |
Full Relief Setting: 2250 psi (155 bar) |
Weight: 14 lb (6.4 kg) |
Length: 11.25" (28.6cm) |
Width: 4" (10.2cm) |
Hydraulic Ports: -8 SAE o-ring |
Connection Size and Type: 3/8" male pipe adapter |
Hose Whips: No (see Accessories) |
IW12340C Features |
---|
Integral Stanley Hyrevz gear motor produces high torque |
Stainless Steel spools and fasteners |
Forward-Reverse with variable speed |
Pistol grip style handle |
Adjustable impact intensity |
1200 ft-lbs (1632 Nm) of maximum impact torque |
Oversized trigger with guard for operator comfort |
Plastisol handle for comfortable ergonomic grip |
Durable swing hammer mechanism |
Cast-in lifting eye |
IW12340C Accessories |
---|
03971: Flush-Face Coupling Set, 3/8" NPT |
03974: Flush-Face Coupling Set, 1/2" NPT |
06830: Hose Whip 18" long, -8 SAE x 1/2" NPT |
31848: Dual Hose, 50' x 1/2", with couplers |
31972: Dual Hose, 25' x 1/2", with couplers |
58633: Twinned Hose, 25' x 1/2", with couplers |
58634: Twinned Hose, 50' x 1/2", with couplers |
01857: Adjustable Chuck & Adapter 3/4" sq female x 3/4" Chuck |
