Saw, Cut-Off, 10" Max, Hydraulic,Stanley
Availability:
In stock
SKU
CO23341

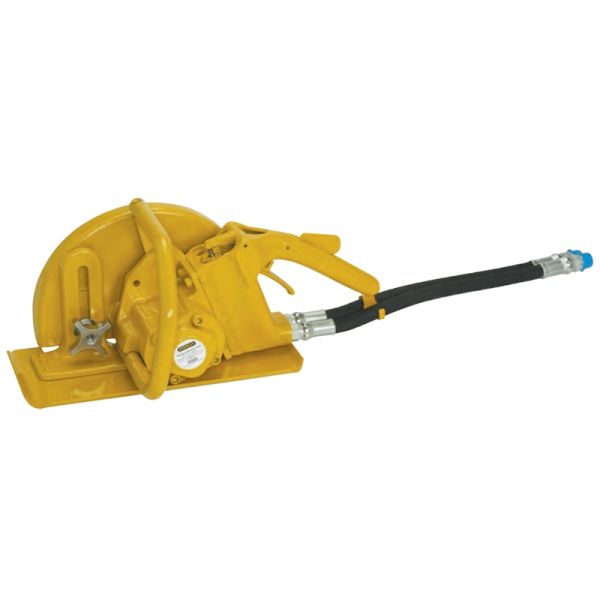

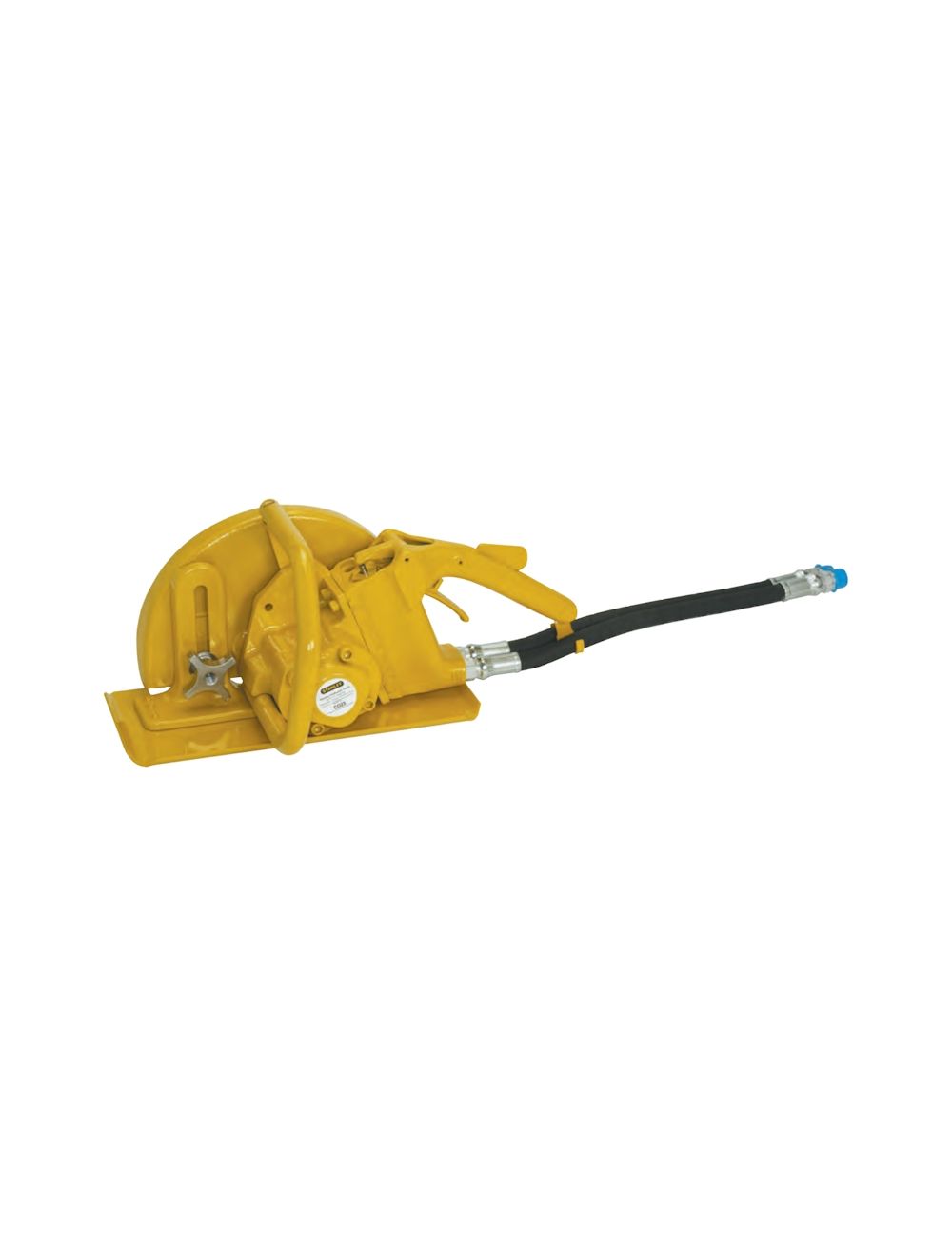

STANLEY CO23 UNDERWATER CUT-OFF SAW (CO23341)
The CO23 Cut-Off Saw is a hydraulic powered saw for dimensional cutting of metal, concrete, rock, masonry and coral. It has a high torque gear motor and 10" blade capacity for abrasive and diamond wheels with a 1" arbor. The CO23 is designed for underwater operation and is painted hi-visibility yellow
The CO23 Cut-Off Saw is a hydraulic powered saw for dimensional cutting of metal, concrete, rock, masonry and coral. It has a high torque gear motor and 10" blade capacity for abrasive and diamond wheels with a 1" arbor. The CO23 is designed for underwater operation and is painted hi-visibility yellow
| CO23341 Specifications | |
|---|---|
| Capacity: 10" (25.4cm) wheel | |
| Performance: 3275 rpm @ 15 gpm (57 lpm) | |
| Arbor: 1" (2.5cm) | |
| Circuit Type: Open Center | |
| Flow Range: 10-15 gpm (38-57 lpm) | |
| Optimum Flow: 15 gpm (57 lpm) | |
| Working Pressure: 1500-2000 psi (105-140 bar) | |
| Full Relief Setting: 2250 psi (155 bar) | |
| Weight: 23 lb (10.4 kg) | |
| Length: 19.5" (49.5cm) | |
| Width: 11" (28cm) | |
| Hydraulic Ports: -8 SAE o-ring | |
| Connection Size and Type: 1/2" male pipe hose end | |
| Couplers: No (see Accessories) | |
| Hose Whips: Yes |
| CO23341 Features |
|---|
| Integral Stanley Hyrevz gear motor produces high torque |
| Direct drive motor |
| Stainless Steel spool and fasteners |
| Adjustable shoe for precise cuts |
| Interlocking safety trigger |
| Cast aluminum handle and guard for durability |
| Counter-clockwise rotation |
| Wide flow range |
| CO23341 Accessories |
|---|
| 03971: Flush-Face Coupling Set, 3/8" NPT |
| 03974: Flush-Face Coupling Set, 1/2" NPT |
| 06830: Hose Whip 18" long, -8 SAE x 1/2" NPT |
| 03694: 10" (25.4cm) diameter, 1" arbor, diamond blade for concrete |
| 04116: 10" (25.4cm) diameter, 1" arbor, abrasive blade for concrete |
| 04117: 10" (25.4cm) diameter, 1" arbor, abrasive blade for aluminum and metal |
| 31848: Dual Hose, 50' x 1/2", with couplers |
| 31972: Dual Hose, 25' x 1/2", with couplers |
| 58633: Twinned Hose, 25' x 1/2", with couplers |
| 58634: Twinned Hose, 50' x 1/2", with couplers |
