Chain Saw, Power Head Only,Concrete Cut,Stanley
Availability:
Out of stock
SKU
DS115000
STANLEY DS11 UNDERWATER DIAMOND CHAIN SAW (DS115000)
The DS11 Diamond Chain Saw is specifically designed to cut solid concrete underwater. Cuts square corners without over-cut and can plunge cut sea walls up to 18" thick. Two available bar lengths (15" and 18") and two different chains depending on the amount of rebar and hardness of the concrete. A minimum of 20 PSI water pressure is required at the saw for cooling and lubrication of the bar and chain. Painted hi-visibility yellow.
The DS11 Diamond Chain Saw is specifically designed to cut solid concrete underwater. Cuts square corners without over-cut and can plunge cut sea walls up to 18" thick. Two available bar lengths (15" and 18") and two different chains depending on the amount of rebar and hardness of the concrete. A minimum of 20 PSI water pressure is required at the saw for cooling and lubrication of the bar and chain. Painted hi-visibility yellow.
| DS115000 Specifications | |
|---|---|
| Cut Capacity: 15 or 18" (38 or 45 cm) Bar | |
| Chain Type: Diamond Impregnated Chain Segments | |
| Circuit Type: Open Center | |
| Flow Range: 12 gpm (45 lpm) | |
| Working Pressure: 1000-2000 psi (70-140 bar) | |
| Full Relief Setting: 2250 psi (155 bar) | |
| Weight (less bar/chain): 28 lb (12.7 kg) | |
| Length (with bar/chain): 37 or 40" (99 or 101.6cm) | |
| Width: 9" (23cm) | |
| Couplers: Yes | |
| Hose Whips: No (see Accessories) | |
| Lubrication/Cooling: Internal Water Channels in Bar |
| DS115000 Features |
|---|
| Direct drive motor - no chain coast when trigger is released |
| Integral Stanley Hyrevz gear motor for durability and power |
| Trigger activated water to bar and chain for lubrication |
| Multi position trigger handle and Wall Walker reduces diver fatigue |
| Heavy duty cast aluminum |
| Cut steel reinforced concrete with Pinnacle chain |
| Stainless Steel spool and fasteners |
| Interlocking safety trigger and hand guard |

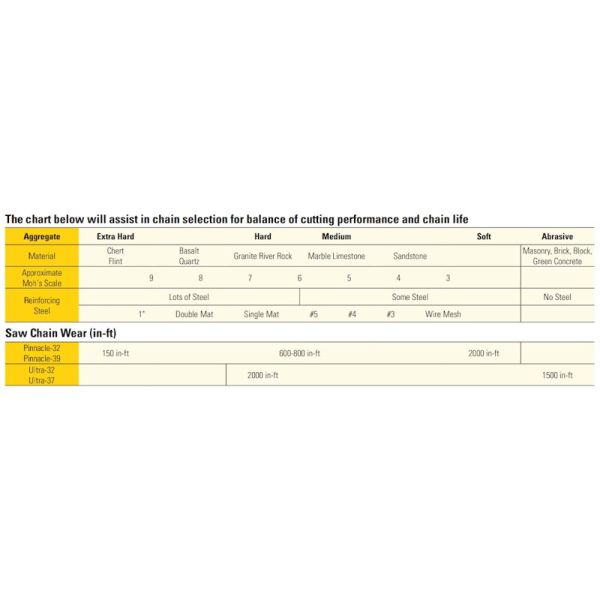

| Pinnacle Chain: For Steel Reinforced, Heavy Aggregate Concrete |
| Ultra Chain - For Light Wire Mesh, Soft/Green Concrete |
| Order bar and chain separately |
| DS115000 Accessories |
|---|
| 30305: 15" Bar, Sprocket Nose |
| 56801: 15" Diamond Chain, Ultra 32 |
| 56803: 15" Diamond Chain, Pinnacle, 32 |
| 30306: 18" Bar, Sprocket Nose |
| 56802: 18" Diamond Chain, Ultra 37 |
| 58632: 18" Diamond Chain, Pinnacle, 37 |
| 03971: Flush-Face Coupling Set, 3/8" NPT |
| 03974: Flush-Face Coupling Set, 1/2" NPT |
| 06830: Hose Whip 18" long, -8 SAE x 1/2" NPT |
| 23517: Sprocket Wrench |
| 31848: Dual Hose, 50' x 1/2", with couplers |
| 31972: Dual Hose, 25' x 1/2", with couplers |
| 58633: Twinned Hose, 25' x 1/2", with couplers |
| 58634: Twinned Hose, 50' x 1/2", with couplers |
| 20859: Diamond Chain Butterfly Repair Kit |
| 20857: Chain Repair Spinner |
| 20858: Chain Repair Breaker |
| DCP30101: Water Pump, 12 VDC, Battery Clip |
| DCP30100: Water Pump, 12 VDC, Marine Type Plug |
