Subsalve is the worldwide leader and innovator in the design and manufacture of engineered inflatables. It is the only major lift bag brand that offers polyurethane-coated fabrics in all of our products. They use high-strength synthetic base fabrics including nylon, polyester and Kevlar coated with urethane and urethane blends. The result? These lift bags are more puncture-, abrasion-, and chemical-resistant than other conventional inflatables. This allows for a longer service life with less maintenance required. All Subsalve products are designed to perform in harsh and hostile environments. With their exclusive polyurethane coatings, you can count on them to get the job done like no other inflatable.
Lift Capacity: 12,200 lb (5500 kg)
Diameter: 70" (1.79 m)
Overall Height: 130" (3.33 m)
Package Cube Dimensions: 41" x 41" x 12" (104cm x 104cm x 31cm)
Weight: 125 lb (56.7 kg)
When the U.S. Navy asked us to develop a flotation device that would dependably withstand particularly abusive conditions, SUBSALVE USA produced the 5-ton Deep Ocean Lift Bag, which has unprecedented strength, low elasticity and superior resistance to abrasion and chemical attack. It became our standard Professional Lift Bag design.

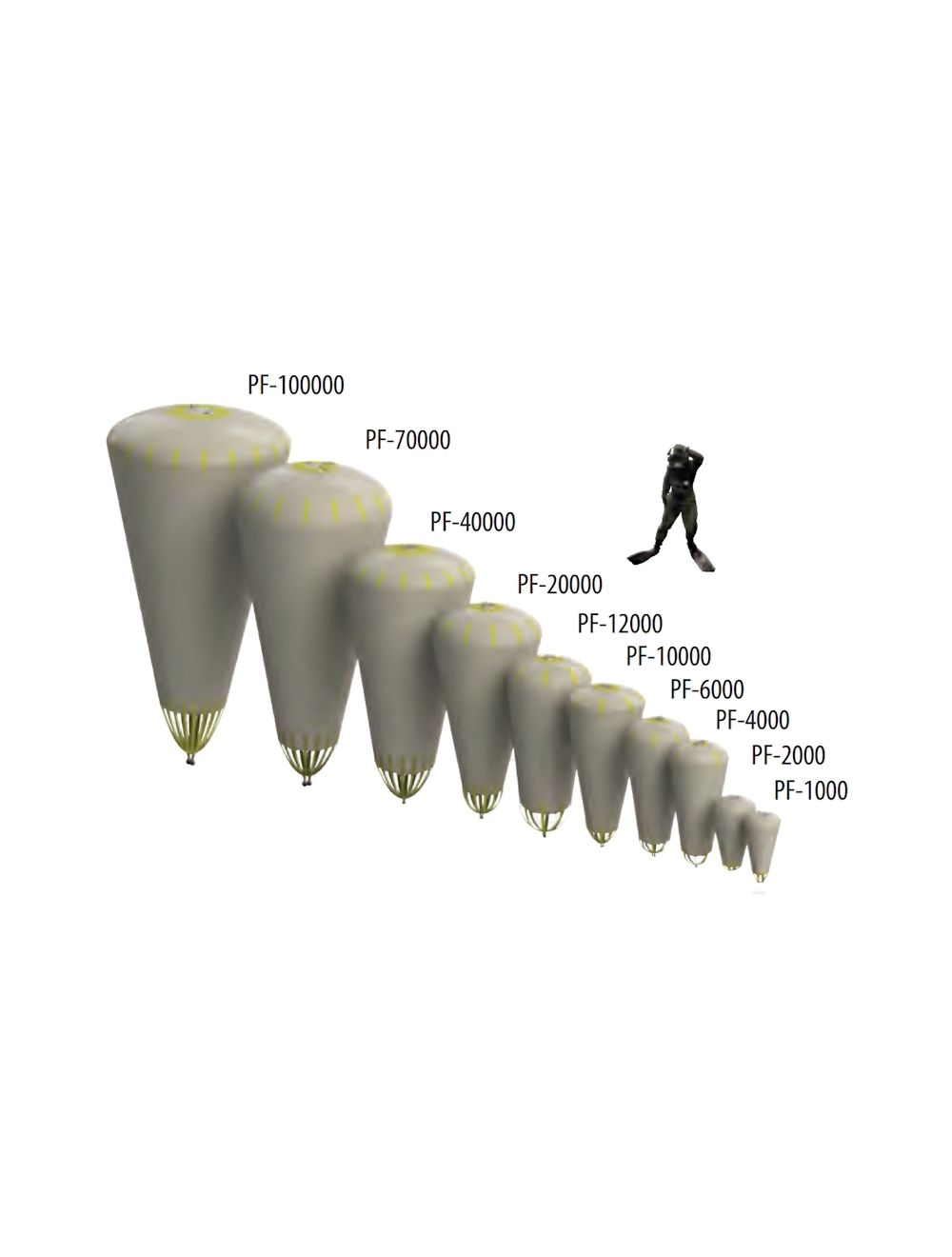

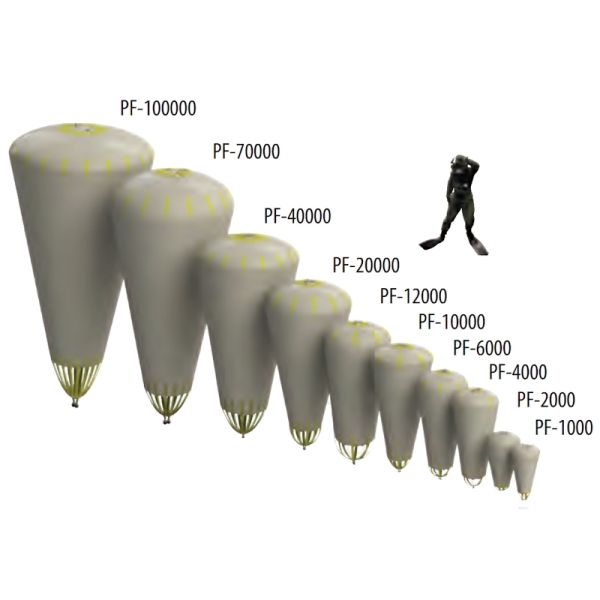

Our most versatile and easy-to-use, these open-bottom, parachute-shaped lift bags with a single attachment point are essential in construction, heavy and light salvage and many offshore tasks
“Inverted water droplet” design facilitates maximum lift capacity with least possible weight, with stress distributed evenly over the fabric surface.
Equipped with all the necessary hardware and ready for immediate use.
Each SUBSALVE USA lift bag is tested prior to shipping.
Urethane-coated nylon—high-strength and heavy-duty
Superior abrasion resistance
Resistant to most petro-chemicals
Low maintenance requirements and easy to clean
RF welded seams
Easy to use
Proprietary Plunger Dump Valve – air control with push-button at top of bag and lanyard at bottom. Vent air from above, beside or below lift bag to achieve desired ascent rate as well as 1/4? NPT inflation port.
Designed with a replaceable heavy-duty nylon webbing lift harness fabricated into the skin of the bag, which bears the load and provides a safe working ratio of 6:1.
Fitted with a 3/4? NPT inflation port with quick disconnect or cam lock fitting and a 3/4? stainless steel ball valve for rapid deflation.
Each SUBSALVE USA lift bag is tested prior to shipping
All Subsalve USA products are compliant with IMCA D-016-AIRBAGS, ABS, U.S. Department of Defense Standards.
