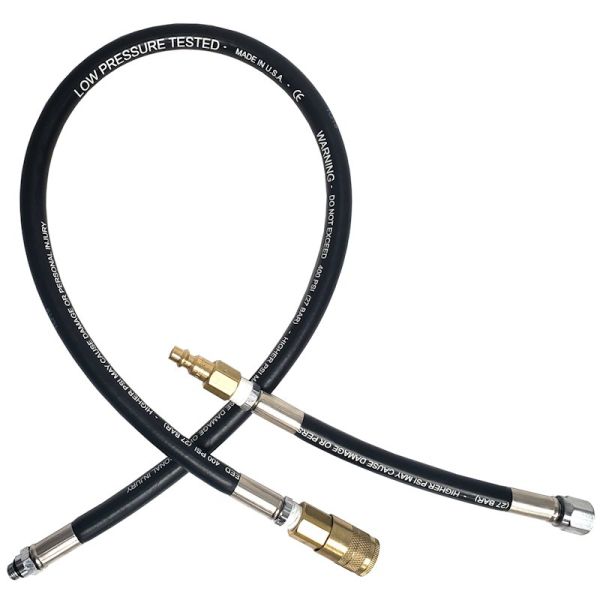

40" BAILOUT WHIP WITH PARKER BRASS QUICK DISCONNECT SET (H002)
The H002 40" bailout whip with Parker brass Q.D. set attaches from the first stage regulator LP port (3/8"-24 male fitting) to the diver's helmet or mask bailout valve (9/16-18" female swivel nut).
H002 Specifications:
Overall Length: 40" (101.6cm)
Helmet Side Whip: 8" BW-8A (20.3cm)
Q.D. Nipple: BH3C
First Stage Side Whip: BW-32A
Q.D. Coupler: B23N
BW-8A Specifications:
Length: 8" (20.3cm)
I.D.: 1/4" (0.635cm)
Maximum Pressure: 350 psi (24 bar)
Connection 1: 9/16”-18 UNF Female (regulator second stage)
Connection 2: 1/4” NPT Male
BH3C Specifications:
Connection Thread Size: 1/4"-18 NPTF female
Body Size: 1/4"
Maximum Operating Pressure: 300 psi (20 bar)
Length: 1.56" (39.6mm)
Exposed Length: 0.80" (20.3mm)
Largest Diameter: 0.72" (18.3mm)
Wrench Flats: 0.62" (15.8mm)
Mating Coupler: B23N and B23N-SL
B23N Specifications:
Connection Thread Size: 1/4"-18 NPTF female
Maximum Operating Pressure: 300 psi (20 bar)
Length: 1.83" (46.5mm)
Largest Diameter: 0.90" (22.9mm)
Wrench Flats: 0.75" (19.1mm)
Mating Nipple: BH3C
BW-32A Specifications:
Length: 32" (81.3cm)
I.D.: 1/4" (0.635cm)
Maximum Pressure: 350 psi (24 bar)
Connection 1: 3/8”-24 Male UNF (regulator first stage)
