Valve, Check, 3/4" FPT, Ball Cone, 400PSI, Bronze

$75.95
Availability: In stock
SKU
61-104-01

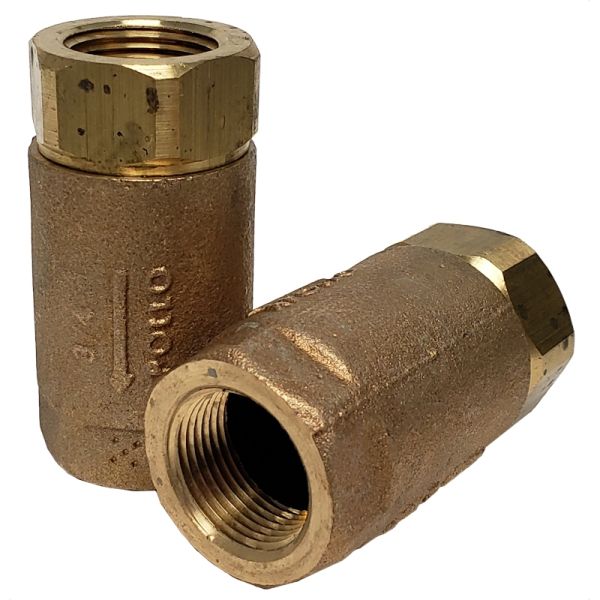

APOLLO 3/4" IN-LINE CHECK VALVE (61-104-01)

The Apollo CVB Ball Cone check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

May be installed in both horizontal and vertical flow with upward flow. Do not use for reciprocating air compressor service.

Specifications:
Inlet Connection: 3/4" NPT female
Outlet Connection: 3/4" NPT female
Cv (1 PSI): 3.53 GPM
Kv (1 PSI): 0.22 LPS
Construction Material: Cast bronze
Ball Cone Material: RPTFE for chemical resistance
Maximum Pressure: 400 PSI (27.6 bar)
Maximum Operating Temperature: 350°F (177°C)
Length: 2.87" (7.29cm)
Diameter: 1.50" (6.02cm)
