Valve, Ball, 3/4

Valve, Ball, 3/4" FPT,S/S Nut/Handle,Brass,600PSI

Valve, Ball, 1/4

Valve, Ball, 1/4" FPT,S/S Nut/Handle,Brass,600 PSI

Valve, Ball, 1" FPT, S/S Nut/Handle,Brass,600 PSI

was $62.95 Special Price $41.35
Availability: In stock
SKU
V500P-16-02

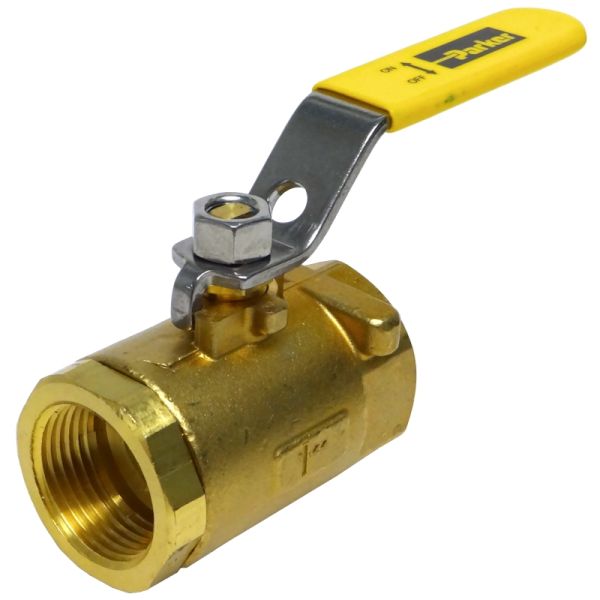

PARKER 1" BALL VALVE (V500P-16-02)

Series 500 low pressure ball valves provide total shut-off capability for services up to 41 Bar (600 PSI).

A quarter turn of the handle is on or off. Ball valves are not intended for use as a throttling valve. Attempting to use it in these applications may result in premature seal failure and/or inability to turn the valve handle.

Features:
Ball valve bodies are machined from high quality CA377 forgings which provide extended service life and resist failure caused by severe temperature conditions.
Highly inert PTFE seats and seals provide resistance to chemical corrosion.
Blowout proof stem design, chrome plated brass ball and a special design handle enable increased turn and leverage for ease of opening and closing.
Specifications:
Inlet: 1" NPT female
Outlet: 1" NPT female
Maximum Working Pressure: 600 PSI (41 bar)
Cv: 35.0
Body: Brass
Handle: Stainless steel
Body Length: 2.75" (6.99cm)
Overall Length: 5.34" (13.56cm)
Overall Height: 3.08" (7.82cm)
