was $440.00 Special Price $387.20
Availability: In stock
SKU
UW-CS-1
BROCO 1/8" SOFTOUCH MILD STEEL WET WELDING ELECTRODES (UW-CS-1)

Broco’s proprietary flux enhancing formulation, BroCote, makes this electrode particularly impervious to water penetration and denigration and ensures consistent certifiable underwater weld quality eliminating costly rework.

SofTouch electrodes are used for wet welding repairs in many applications where steel must be joined underwater according to code specifications. SofTouch welds consistently meet or exceed AWS D3.6-99 specifications for Class B welds in all positions (flat, horizontal, vertical and overhead). SofTouch is designed to pass all AWS test requirements, including radiograph, tensiles, bends and hardness.

Since 1989, SofTouch electrodes have been specified in the U.S. Navy’s Ships Husbandry Manual Chapter 11, “Underwater Wet and Dry Chamber Welding.”

SofTouch electrodes are lot certified and available in various sizes and mild steel and stainless alloys. Available diameters include 1/8 inch, 5/32 inch, and 3/16 inch. Stainless electrodes are sold in 1/8 inch and 5/32 inch sizes.

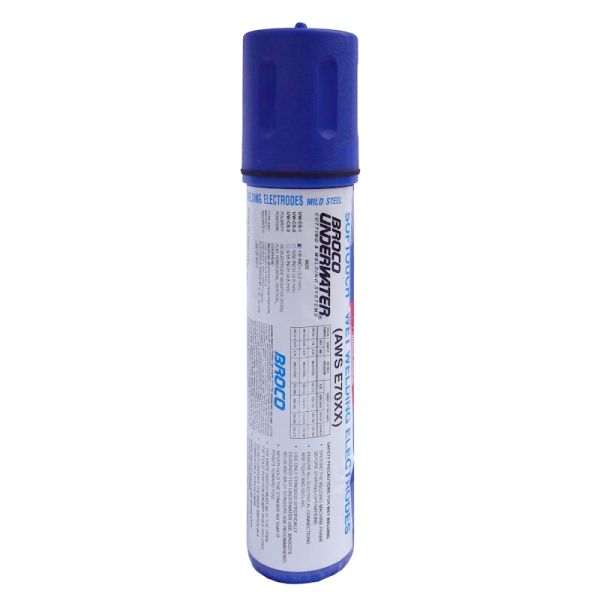

Broco Underwater wet welding electrodes are sealed in a Mil-Spec foil pouch to prevent contamination and then inserted in a rigid resealable plastic tube which provides maximum protection. The color-coded plastic tube denotes mild or stainless steel electrodes type. Operating guidelines are printed on the label.

PART NUMBER DESCRIPTION
UW-CS-1 SofTouch Wet Welding Electrodes
AWS E7014 Mild Steel, 1/8”(3.20mm)
8-lb. Tube Approx. 95 Electrodes
UW-CS-2 SofTouch Wet Welding Electrodes
AWS E7014 Mild Steel, 5/32”(3.97mm)
8-lb. Tube Approx. 69 Electrodes
UW-CS-3 SofTouch Wet Welding Electrodes
AWS E7014 Mild Steel, 3/16”(4.76mm)
8-lb. Tube Approx. 48 Electrodes
UW-SS-1 SofTouch Wet Welding Electrodes
AWS E312-16 Stainless Steel, 1/8”(3.20mm)
8-lb. Tube Approx. 95 Electrodes
UW-SS-2 SofTouch Wet Welding Electrodes
AWS E312-16 Stainless Steel, 5/32”(3.97mm)
8-lb. Tube Approx. 69 Electrodes
