Rod, Broco, ProTouch,1/8

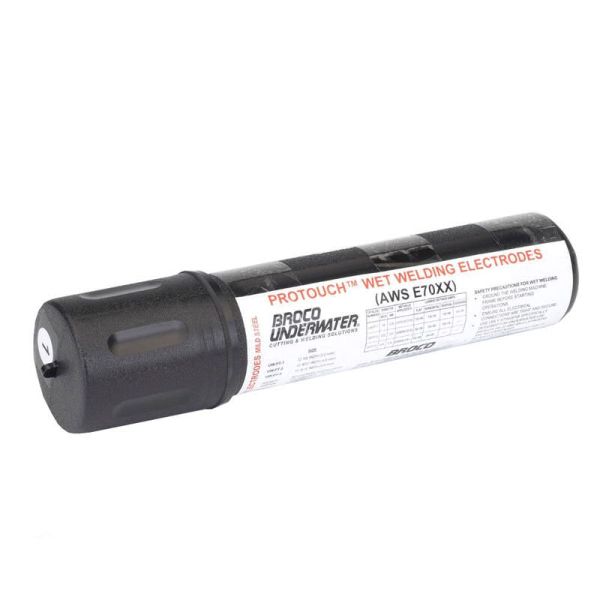

Rod, Broco, ProTouch,1/8",Mild Steel,8#,95 Rods

Rod, Broco, ProTouch,5/32",Mild Steel,8#,69 Rods

Be the first to review this product

was $320.00 Special Price $288.00

Availability: Backordered

SKU

UW-PT-2

CARBON STEEL PROTOUCH 15/32" MILD STEEL BROCO RODS, 8#, 69 RODS (UW-PT-2)

Specifications:

Size: 5/32 in (2.97 mm)
Count: 69 electrodes per 8 lb. tube
Polarity: DC Electrode Positive (DCEP)
Position: Flat Horizontal, Vertical, Overhead
Type Arc: Medium, Moderate Penetration
Material: Low Carbon Steels
Techniques Short arc length with an electrode lead angle 30° ± 15° to the line of the weld

Catalog Number	Diameter	Diameter	Wet Weld Application	Current Settings
Catalog Number	Inch	MM	Wet Weld Application	Flat	Horizontal	Vertical	Overhead
UW/PT-1	1/8	3.20	Carbon Steel	135-155	135-150	135-145	135-145
UW/PT-2	5/32	2.97	Carbon Steel	165-185	165-180	165-175
UW/PT-3	3/16	4.76	Carbon Steel	245-250	245-260
