Regulator, Tescom,4500PSI In,0-500 PSI Out,Brass
Availability:
Out of stock
SKU
44-2214-2441068

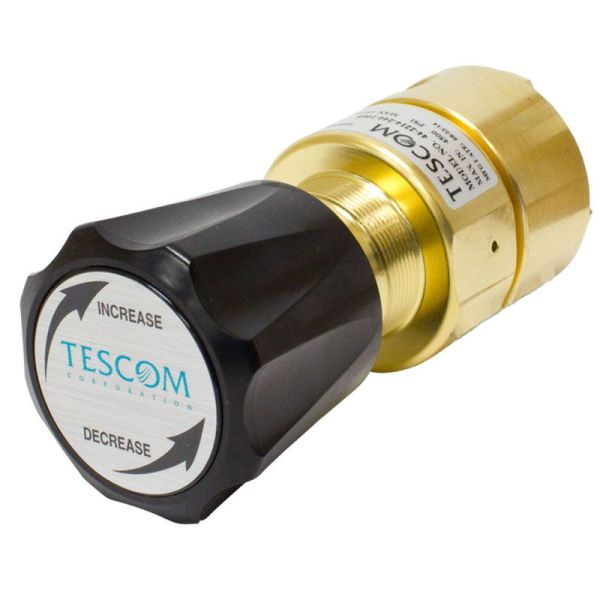

TESCOM 44-2200 SERIES REGULATOR (44-2214-2441068)
Tescom 44-2214-244-1068 is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity.
Tescom 44-2214-244-1068 is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity.
| 44-2214-2441068 Features: |
|---|
| Compact. Designed to minimize contamination and provide accurate regulation of any corrosive, noncorrosive, or toxic gas |
| Brass model provides added economy for control of non-corrosive media |
| Metal-to-metal diaphragm to body seal ensures minimum inboard and outboard leakage |
| Convoluted diaphragm delivers excellent accuracy and long service life |
| 44-2214-2441068 Specfications: |
|---|
| Body Material: Brass |
| Inlet Pressure: 4500 psi (310 bar) |
| Outlet Pressure Range: 0-500 psi (0-34.5 bar) |
| Port Type: NPTF |
| Port Size: 1/4" |
| Main Valve: 1/4", Cv=0.6 |
| Modification: Inlet Pressure: 4500 PSI; CTFE Seat; CTFE Inner Friction Sleeve; Inline Porting |
