Regulator, GO,6000PSI/500PSI,S/S,4-1/4"Ports,PCTFE

$429.00
Availability: In stock
SKU
PR1-1E11H5J111

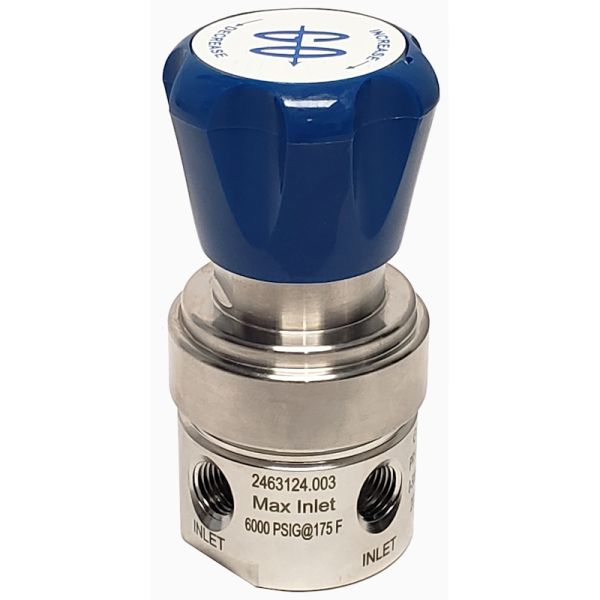

GO PR-1 SERIES REGULATOR (PR1-1E11H5J111)

The PR-1 Series is a versatile specialty pressure reducing control valve designed to fulfill a wide range of needs in instrumentation sample systems and other applications such as semiconductor processing gases.

The many features of the PR-1 make it ideal for a wide range of applications controlling pressures at low to moderate flows in gas or liquid service. 316L stainless steel is used to facilitate welded connections.

Stainless steel caps and adjusting screws prevent atmospheric corrosion and maintain appearance. The internal body surface finish is less than 25 Ra as standard. This, coupled with electropolishing, allows easier cleaning and potentially less particle contamination in the flow stream.

PR1-1E11H5J111 Features:
Gas or liquid service
316L stainless steel, PCTFE only in flow stream
Electropolished 316L body with better than 25 Ra diaphragm cavity surface finish
Stainless steel cap with S/S adjusting screw
Inlet pressures of up to 6000 psi (413 bar)
Outlet pressure range of 0–500 psi (34.5 bar)
20 micron filters
Bubble-tight shutoff under most conditions
Cv flow coefficient of 0.20

PR1-1E11H5J111 Specfications:
Body Material: 316L stainless steel, stainless steel diaphragm
Process Port Types: 1/4? FNPT (1/4? FNPT gauge ports), standard
Surface Finish of Diaphragm Cavity: <25 Ra, standard
Seat Material: PCTFE (formerly Kel-F 81)
Flow Coefficient (Cv): 0.2
Outlet Range: 0-500 psi (34.5 bar)
Diaphragm Type: Standard
Diaphragm Facing/Backing Material: PTFE/metal backing
Cap Assembly: Standard, stainless steel
Maximum Temperature: 175°F (80°C)
Weight: 1.9lb (0.86kg)
