Hydraulic Unit,20GPM@ 2000PSI,2-Tools,Hatz,P/C

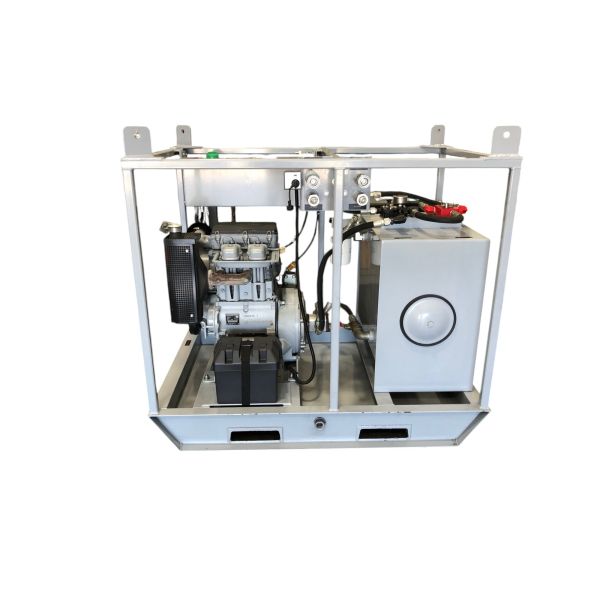

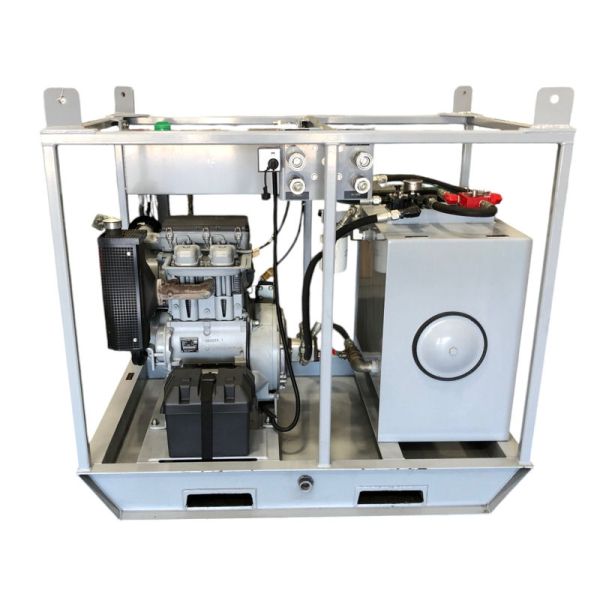

20 GPM HYDRAULIC POWER UNIT (HU-020A)

Powered by a Hatz 35 HP diesel angine and possessing a 40 gallon (151 l) hydraulic oil reservoir, Divers Supply's HU-020A hydraulic unit provides 20 GPM (76 l/min) to run two hydraulic tools used by divers inland or offshore. The HU-020A is designed to be a rugged, reliable commercial grade hydraulic unit built to withstand harsh offshore environments.

HU-020A Features
20 GPM (76 l/min) flow
Dual circuit
Oil sight/temp glass
150 micron suction strainer
25 micron spin-on filter
Dual, adjustable flow control valve
Dual, in-line flow meters
Heavy duty gear pump
1" Quick disconnects
Powder-coated steel skid with 4 lifting eyes, forklift slots and drip pan

HU-020A Specifications
Engine: Hatz 2M41Z diesel engine
Flow: 20 GPM (76 l/min)
Operating Pressure: 2000 psi (138 bar)
Power: 35 HP (26 kw)
Reservoir Capacity: 40 Gallons (151 l)
Fuel Tank Capacity: 4 Gallons (15 l)
Filled Weight: 1500 lb (680 kg)
Dimensions: 61"L x 39"W x 57"H (155cm x 99cm x 145cm)

Hatz 2M41Z Engine Specifications
Diesel powered
35 HP (26 kw) at 2800 RPM
Air cooled
2-Cylinder, 4 stroke
Electric start
