was $899.95 Special Price $805.00
Availability: In stock
SKU
1000

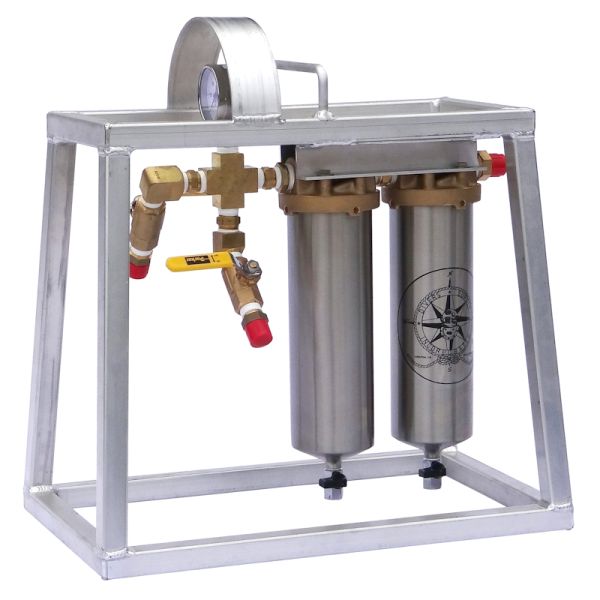

TWO-STAGE FILTRATION SYSTEM (1000)

Divers Supply's 1000 two-stage filtration system is composed of a coalescing filter followed by a charcoal filter. The coalescing filter (cotton cord wound) removes particulates down to 5 microns and facilitates removal of oil and water from the air supply. The charcoal filter removes tastes and smells from the delivered air.

The filter canisters are stainless steel with brass heads and have manual drains controlled with mini chrome ball valves. The full frame is designed to physically protect the system (canisters, plumbing and pressure gauge) as well as provide stability.

Need a 2-stage filtration system without the frame for easy hard plumbed mounting? See part number 1000 NO FRAME. Want 3-stage filtration? See part numbers 1250 and 1250 NO FRAME.

1000 Specifications
Inlet: #10 JIC male
Outlets: #10 JIC male
Pressure Guage: 0-300 PSI
Plumbing: Brass
Canisters: Stainless Steel (Part Number SS1HA-U)
Coalescing Filter Element: RWS-5
Charcoal Filter Element: AP117DS
Frame: 1" (2.5cm) Square Aluminum Tube with Carry Handle
Dimensions: 20"L x 12"W x 21"H (51cm x 30cm x 53cm)
Weight: 25 lb (11.3 kg)
