Valve, Relief, 1/4" MPT, 225 PSI,Viton Seal,Brass
Availability:
Out of stock
SKU
SRV250-V-225

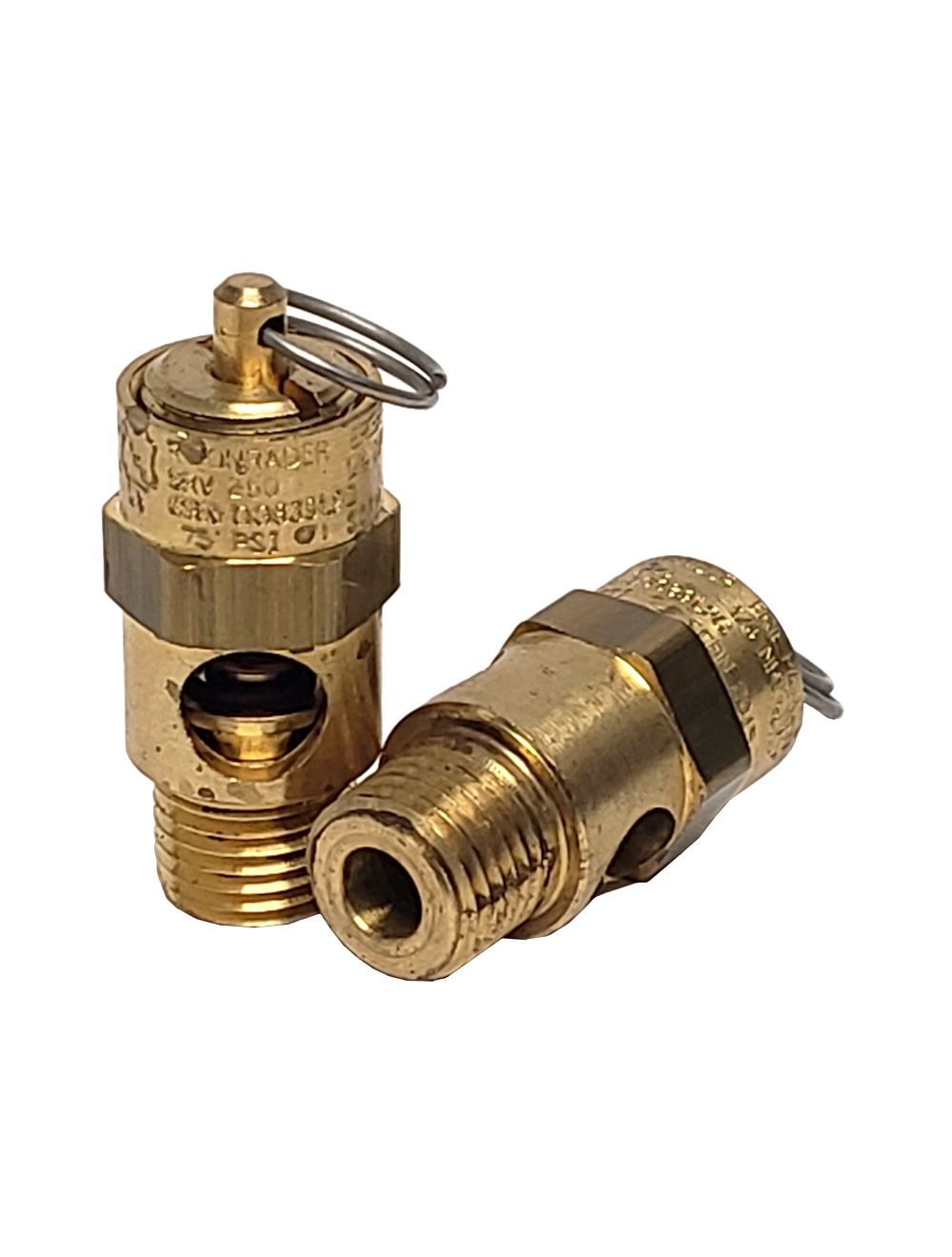

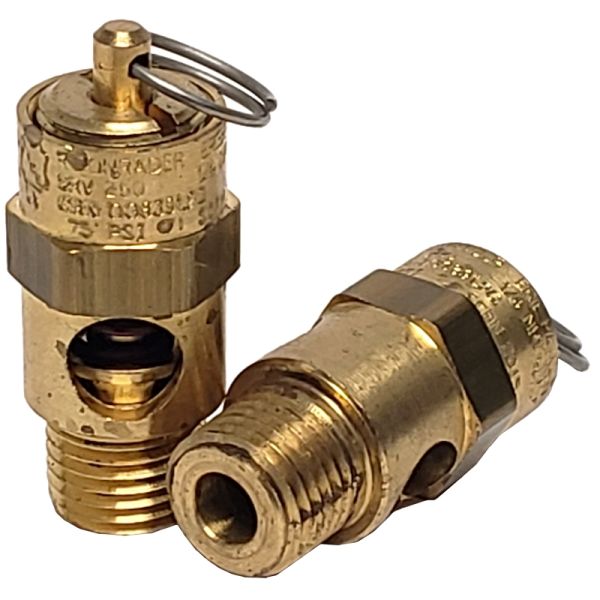

CONRADER 225 PSI RELIEF VALVE (SRV250-V-225)
Conrader safety valves are designed to protect unfired pressure vessels and systems from over pressure in compressed air and gas applications. Soft seat safety valve (SRV-Series) has an elastomer seal. All Conrader safety valves are designed, manufactured, and certified under Conrader's ISO 9001 quality control system to meet the requirements of ASME Boiler and Pressure Vessel Code Section VIII Division 1 and are registered for use in Canada (CRN).
Conrader safety valves are designed to protect unfired pressure vessels and systems from over pressure in compressed air and gas applications. Soft seat safety valve (SRV-Series) has an elastomer seal. All Conrader safety valves are designed, manufactured, and certified under Conrader's ISO 9001 quality control system to meet the requirements of ASME Boiler and Pressure Vessel Code Section VIII Division 1 and are registered for use in Canada (CRN).
| Specifications: |
|---|
| Set Pressure: 225 PSIG (15.5 bar) |
| Set Pressure Tolerance: ±6.75 PSIG (0.47 bar) |
| Seat Leakage: Bubble tight within ±22.5 PSIG (1.55 bar) |
| Flow Factor (Slope Method): 0.74 |
| Connection Size: 1/4" NPT male |
| Seat Material: Brass |
| Cap Material: Brass |
| Piston Material: Brass |
| Spring Material: 17-7 Stainless steel |
| Seal Material: Viton |
| Operating Temperature Range: -65°F to 400°F (-54°C to 204°C) |
| Overall Length: 1.75" (4.45cm) |
