Q.D., Nipple, 3/4" FPT, Cad Plated Steel
$20.75
Availability:
Out of stock
SKU
VHN-12-12F

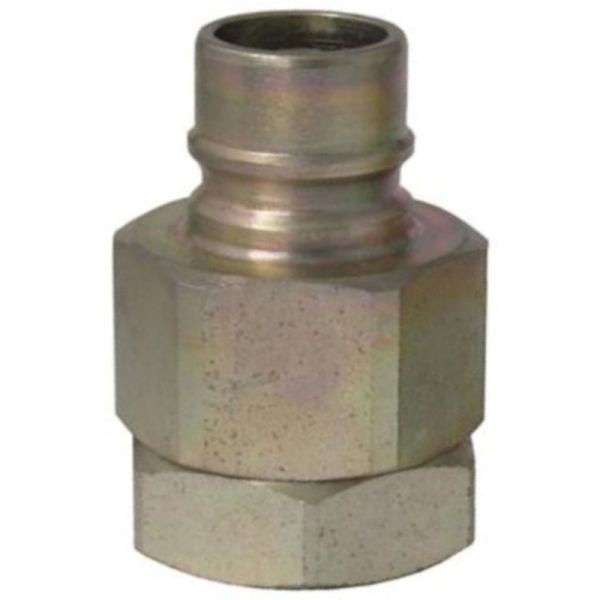

3/4" PARKER SNAP-TITE STEEL NIPPLE (VHN-12-12F)
H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
VHN-12-12F Specifications:
H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
VHN-12-12F Specifications:
| Material: Cad plated steel |
| Type: Valved |
| Series: Popet valve |
| Seals: Nitrile |
| Body Size: 3/4" |
| Port End Size: 3/4"-14 NPTF female |
| Maximum Working Pressure: 3500 psi (241 bar) |
| Length: 2.29" (58.2mm) |
| Largest Diameter: 1.73" (43.9mm) |
| Wrench Flats: 1.50" (38.1mm) |
| Mating Coupler: VHC-12-12F |
