Q.D., Coupler, 1

Q.D., Coupler, 1" FPT, Cad Plated Steel

Q.D., Coupler, 3/4" FPT, Cad Plated Steel

$36.95
Availability: Out of stock
SKU
VHC-12-12F

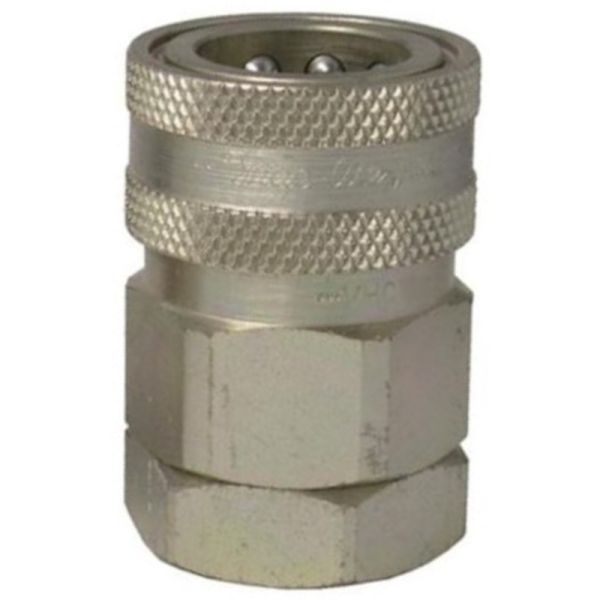

3/4" PARKER SNAP-TITE STEEL QUICK COUPLER (VHC-12-12F)

H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.

H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.

VHC-12-12F Specifications:
Material: Cad plated steel
Type: Valved
Series: Popet valve
Seals: Nitrile
Body Size: 3/4"
Port End Size: 3/4"-14 NPTF female
Maximum Working Pressure: 3500 psi (241 bar)
Length: 2.42" (61.5mm)
Largest Diameter: 1.73" (43.9mm)
Wrench Flats: 1.50" (38.1mm)
Mating Nipple: VHN-12-12F
